Add legend to axes
collapse all in page
Syntax
legend
legend(label1,...,labelN)
legend(labels)
legend(subset,___)
legend(target,___)
legend(___,'Location',lcn)
legend(___,'Orientation',ornt)
legend(___,Name,Value)
legend(bkgd)
lgd = legend(___)
legend(vsbl)
legend('off')
Description
example
legend creates a legend with descriptive labels for each plotted data series. For the labels, the legend uses the text from the DisplayName properties of the data series. If the DisplayName property is empty, then the legend uses a label of the form 'dataN'. The legend automatically updates when you add or delete data series from the axes. This command creates a legend in the current axes, which is returned by the gca command. If the current axes is empty, then the legend is empty. If no axes exist, then legend creates a Cartesian axes.
example
legend(label1,...,labelN) sets the legend labels. Specify the labels as a list of character vectors or strings, such as legend('Jan','Feb','Mar').
legend(labels) sets the labels using a cell array of character vectors, a string array, or a character matrix, such as legend({'Jan','Feb','Mar'}).
example
legend(subset,___) only includes items in the legend for the data series listed in subset. Specify subset as a vector of graphics objects. You can specify subset before specifying the labels or with no other input arguments.
example
legend(target,___) uses the axes or standalone visualization specified by target instead of the current axes. Specify the target as the first input argument.
example
legend(___,'Location',lcn) sets the legend location. For example, 'Location','northeast' positions the legend in the upper right corner of the axes. Specify the location after other input arguments.
example
legend(___,'Orientation',ornt), where ornt is 'horizontal', displays the legend items side-by-side. The default for ornt is 'vertical', which stacks the items vertically.
example
legend(___,Name,Value) sets legend properties using one or more name-value pair arguments.
example
legend(bkgd), where bkgd is 'boxoff', removes the legend background and outline. The default for bkgd is 'boxon', which displays the legend background and outline.
lgd = legend(___) returns the Legend object. Use lgd to query and set properties of the legend after it is created. For a list of properties, see Legend Properties.
legend(vsbl) controls the visibility of the legend, where vsbl is 'hide', 'show', or 'toggle'.
legend('off') deletes the legend.
Examples
collapse all
Add Legend to Current Axes
Open Live Script

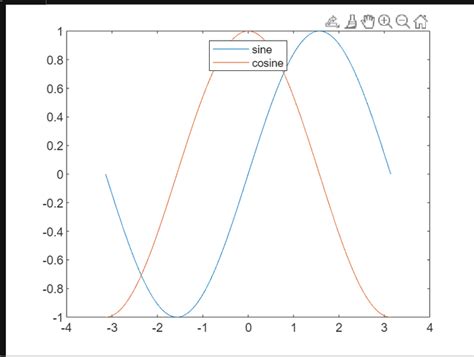

Plot two lines and add a legend to the current axes. Specify the legend labels as input arguments to the legend function.
x = linspace(0,pi);y1 = cos(x);plot(x,y1)hold on y2 = cos(2*x);plot(x,y2)legend('cos(x)','cos(2x)')
If you add or delete a data series from the axes, the legend updates accordingly. Control the label for the new data series by setting the DisplayName property as a name-value pair during creation. If you do not specify a label, then the legend uses a label of the form 'dataN'.
Note: If you do not want the legend to automatically update when data series are added to or removed from the axes, then set the AutoUpdate property of the legend to 'off'.
y3 = cos(3*x);plot(x,y3,'DisplayName','cos(3x)')hold off
Delete the legend.
legend('off')
Add Legend to Specific Axes
Open Live Script
Starting in R2019b, you can display a tiling of plots using the tiledlayout and nexttile functions. Call the tiledlayout function to create a 2-by-1 tiled chart layout. Call the nexttile function to create the axes objects ax1 and ax2. Plot random data in each axes. Add a legend to the upper plot by specifying ax1 as the first input argument to legend.
tiledlayout(2,1)y1 = rand(3);ax1 = nexttile; plot(y1)y2 = rand(5);ax2 = nexttile; plot(y2)legend(ax1,{'Line 1','Line 2','Line 3'})
Specify Legend Labels During Plotting Commands
Open Live Script
Plot two lines. Specify the legend labels during the plotting commands by setting the DisplayName property to the desired text. Then, add a legend.
x = linspace(0,pi);y1 = cos(x);plot(x,y1,'DisplayName','cos(x)')hold on y2 = cos(2*x);plot(x,y2,'DisplayName','cos(2x)')hold offlegend
Exclude Line from Legend
Open Live Script
To exclude a line from the legend, specify its label as an empty character vector or string. For example, plot two sine waves, and add a dashed zero line by calling the yline function. Then create a legend, and exclude the zero line by specifying its label as ''.
x = 0:0.2:10;plot(x,sin(x),x,sin(x+1));hold onyline(0,'--')legend('sin(x)','sin(x+1)','')
List Entries in Columns and Specify Legend Location
Open Live Script
Plot four lines. Create a legend in the northwest area of the axes. Specify the number of legend columns using the NumColumns property.
x = linspace(0,pi);y1 = cos(x);plot(x,y1)hold ony2 = cos(2*x);plot(x,y2)y3 = cos(3*x);plot(x,y3)y4 = cos(4*x);plot(x,y4)hold offlegend({'cos(x)','cos(2x)','cos(3x)','cos(4x)'},... 'Location','northwest','NumColumns',2)
By default, the legend orders the items from top to bottom along each column. To order the items from left to right along each row instead, set the Orientation property to 'horizontal'.
Reverse Order of Legend Items
Since R2023b
Open Live Script
You can reverse the order of the legend items by setting the Direction property of the legend. For example, plot four lines and add a legend.
plot([4 5 6 7; 0 1 2 3])lgd = legend("First","Second","Third","Fourth");
Reverse the order of the legend items.
lgd.Direction = "reverse";
Display Shared Legend in Tiled Chart Layout
Open Live Script
When you want to share a legend between two or more plots, you can display the legend in a separate tile of the layout. You can place the legend within the grid of tiles, or in an outer tile.
Create three plots in a tiled chart layout.
t = tiledlayout('flow','TileSpacing','compact');nexttileplot(rand(5))nexttileplot(rand(5))nexttileplot(rand(5))
Add a shared legend, and move it to the fourth tile.
lgd = legend;lgd.Layout.Tile = 4;
Next, add a fourth plot and move the legend to the east tile.
nexttileplot(rand(5))lgd.Layout.Tile = 'east';
Included Subset of Graphics Objects in Legend
Open Live Script
If you do not want to include all of the plotted graphics objects in the legend, then you can specify the graphics objects that you want to include.
Plot three lines and return the Line objects created. Create a legend that includes only two of the lines. Specify the first input argument as a vector of the Line objects to include.
x = linspace(0,pi);y1 = cos(x);p1 = plot(x,y1);hold ony2 = cos(2*x);p2 = plot(x,y2);y3 = cos(3*x);p3 = plot(x,y3);hold offlegend([p1 p3],{'First','Third'})
Create Legend with LaTeX Markup
Open Live Script
Create a plot, and add a legend with LaTeX markup by calling the legend function and setting the Interpreter property to 'latex'. Surround the markup with dollar signs ($).
x = 0:0.1:10;y = sin(x);dy = cos(x);plot(x,y,x,dy);legend('$sin(x)$','$\frac{d}{dx}sin(x)$','Interpreter','latex');
Add Title to Legend
Open Live Script
Plot two lines and create a legend. Then, add a title to the legend.
x = linspace(0,pi);y1 = cos(x);plot(x,y1)hold ony2 = cos(2*x);plot(x,y2)hold offlgd = legend('cos(x)','cos(2x)');title(lgd,'My Legend Title')
Remove Legend Background
Open Live Script
Plot two lines and create a legend in the lower left corner of the axes. Then, remove the legend background and outline.
x = linspace(0,pi);y1 = cos(x);plot(x,y1)hold ony2 = cos(2*x);plot(x,y2)hold offlegend({'cos(x)','cos(2x)'},'Location','southwest')legend('boxoff')
Specify Legend Font Size and Color
Open Live Script
You can change different aspects of a legend by setting properties. You can set properties by specifying name-value arguments when you call legend, or you can set properties of the Legend object after you call legend.
Plot four lines of random data. Create a legend and assign the Legend object to the variable lgd. Set the FontSize and TextColor properties using name-value arguments.
rdm = rand(4);plot(rdm)lgd = legend({'Line 1','Line 2','Line 3','Line 4'},... 'FontSize',12,'TextColor','blue');
Modify the legend after it is created by referring to lgd. Set the NumColumns property using the object dot property name notation.
lgd.NumColumns = 2;
Input Arguments
collapse all
label1,...,labelN — Labels (as separate arguments)
character vectors | strings
Labels, specified as a comma-separated list of character vectors or strings.
To exclude an item from the legend, specify the corresponding label as an empty character vector or string.
To include special characters or Greek letters in the labels, use TeX or LaTeX markup. For a table of options, see the Interpreter property.
To specify labels that are keywords, such as 'Location' or 'off', use a cell array of character vectors, a string array, or a character array.
Example: legend('Sin Function','Cos Function')
Example: legend("Sin Function","Cos Function")
Example: legend("Sample A","","Sample C")
Example: legend('\gamma','\sigma')
labels — Labels (as an array)
cell array of character vectors | string array | categorical array
Labels, specified as a cell array of character vectors, string array, or categorical array.
To exclude an item from the legend, specify the corresponding label as an empty character vector in the cell array, or as an empty string in the string array.
To include special characters or Greek letters in the labels, use TeX or LaTeX markup. For a table of options, see the Interpreter property.
Example: legend({'Sin Function','Cos Function'})
Example: legend(["Sin Function","Cos Function"])
Example: legend({'Sample A','','Sample C'})
Example: legend({'\gamma','\sigma'})
Example: legend(categorical({'Alabama','New York'}))
subset — Data series to include in legend
vector of graphics objects
Data series to include in the legend, specified as a vector of graphics objects.
target — Target for legend
Axes object | PolarAxes object | GeographicAxes object | standalone visualization
Target for legend, specified as an Axes object, a PolarAxes object, a GeographicAxes object, or a standalone visualization with a LegendVisible property, such as a GeographicBubbleChart object. If you do not specify the target, then the legend function uses the object returned by the gca command as the target.
Standalone visualizations do not support modifying the legend appearance, such as the location, or returning the Legend object as an output argument..
lcn — Legend location
'north' | 'south' | 'east' | 'west' | 'northeast' | ...
Legend location with respect to the axes, specified as one ofthe location values listed in this table.
| Value | Description |
|---|---|
'north' | Inside top of axes |
'south' | Inside bottom of axes |
'east' | Inside right of axes |
'west' | Inside left of axes |
'northeast' | Inside top-right of axes (default for 2-D axes) |
'northwest' | Inside top-left of axes |
'southeast' | Inside bottom-right of axes |
'southwest' | Inside bottom-left of axes |
'northoutside' | Above the axes |
'southoutside' | Below the axes |
'eastoutside' | To the right of the axes |
'westoutside' | To the left of the axes |
'northeastoutside' | Outside top-right corner of the axes (default for 3-D axes) |
'northwestoutside' | Outside top-left corner of the axes |
'southeastoutside' | Outside bottom-right corner of the axes |
'southwestoutside' | Outside bottom-left corner of the axes |
'best' | Inside axes where least conflict occurs with the plot data at the time that you create the legend. If the plot data changes, you might need to reset the location to 'best'. |
'bestoutside' | Outside top-right corner of the axes (when the legend has a vertical orientation) or below the axes (when the legend has a horizontal orientation) |
'layout' | A tile in a tiled chart layout. To move the legend to a different tile, set the Layout property of the legend. |
'none' | Determined by Position property. Use the Position propertyto display the legend in a custom location. |
Example: legend('Location','northeastoutside')
ornt — Orientation
'vertical' (default) | 'horizontal'
Orientation, specified as one of these values:
'vertical'— Stack the legenditems vertically.'horizontal'— List thelegend items side-by-side.
Example: legend('Orientation','horizontal')
bkgd — Legend box display
'boxon' (default) | 'boxoff'
Legend box display, specified as one of these values:
'boxon'— Display the legend background and outline.'boxoff'— Do not display the legend background and outline.
Example: legend('boxoff')
vsbl — Legend visibility
'hide' | 'show' | 'toggle'
Legend visibility, specified as one of these values:
'hide'— Hide the legend.'show'— Show the legend or create a legend if one does not exist.'toggle'— Toggle the legend visibility.
Example: legend('hide')
Name-Value Arguments
Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.
Before R2021a, use commas to separate each name and value, and enclose Name in quotes.
Example: legend({'A','B'},'TextColor','blue','FontSize',12) creates a legend with blue, 12-point font.
Note
The properties listed here are only a subset. For a complete list, see Legend Properties.
NumColumns — Number of columns
1 (default) | positive integer
Number of columns, specified as a positive integer. If there are not enough legend items to fill the specified number of columns, then the number of columns that appear might be fewer.
Use the Orientation property to control whether the legend items appear in order along each column or along each row.
Example: lgd.NumColumns = 3
Output Arguments
collapse all
lgd — Legend object
Legend object
Legend object. Use lgd toview or modify properties of the legend after it is created.
plot(rand(3))lgd = legend('line1','line2','line3');lgd.FontSize = 12;lgd.FontWeight = 'bold';
Tips
To label more than 50 objects in the legend, specify a label for each object. Otherwise,
legenddepicts only the first 50 objects in the graph.
Algorithms
Recalling the
legendfunction does not reset legend properties, such as the location or orientation. If a legend exists, then thelegendfunction updates the existing legend. AnAxesobject can have only one legend.The legend reflects the visibility of graphics objects in the axes. Graphics objects that have a
Visibleproperty set to'off'appear as grayed out items in the legend.
Version History
Introduced before R2006a
expand all
R2023b: Legend order is reversed for stacked bar charts and area charts
The default order of legend items for stacked (vertical) bar charts and area charts is now reversed to match the stacking order of the chart. Previously, the legend items were listed in the opposite order of stacked bars and area charts.
To preserve the order of previous releases, set the Direction property of the legend to "normal".
R2022b: Legends update when you delete lines or other plot objects
If you delete an object from the axes, such as a line or scatter object, the legend updates to reflect the change regardless of whether the AutoUpdate property is set to "on" or "off".
Previously, the legend did not update when you removed objects from the axes while the AutoUpdate property was set to "off".
R2021a: Passing an empty label to the legend function omits the entry from the legend
When you call the legend function and specify a label as an empty character vector, an empty string, or an empty element in a cell array or string array, the corresponding entry is omitted from the legend. In R2020b and earlier releases, the entry appears in the legend without a label.
For example, this code plots two sine waves and a reference line at y=0. Then it creates a legend with three labels, where the last label is empty. In R2020b, the third line appears in the legend without a label. In R2021a, the third line is omitted from the legend.
x = 0:0.2:10;plot(x,sin(x),x,sin(x+1));hold onyline(0,'--')legend('sin(x)','sin(x+1)','')
To keep an entry in the legend without a label, include a space character in the label. For example, to update the preceding code, specify the last label as a character vector containing a space (' ').
legend('sin(x)','sin(x+1)',' ')
Alternatively, if you do not want to display a space character, you can pass the individual line objects to the legend function with an array of labels. To get the individual line objects, call each plotting function with an output argument.
x = 0:0.2:10;p = plot(x,sin(x),x,sin(x+1));hold online0 = yline(0,'--');legend([p(1) p(2) line0], {'sin(x)','sin(x+1)',''});
R2018b: legend interprets arguments as property names when property exists
Starting in R2018b, if you pass an argument to the legend function that matches the name of a legend property, the function interprets the argument as the name of a name-value pair. In previous releases, the legend function recognized name-value pairs only when the first argument was a cell array.
As a result of this change, in most cases, it is unnecessary to specify the first argument as a cell array when using name-value pairs. However, if you want a label in your legend that matches the name of a legend property, such as Position or NumColumns, then you must specify all the labels in a cell array. Otherwise, the legend function interprets the argument as a name-value pair instead of a label.
| Description | Recommended Code |
|---|---|
If you want a label in your legend that matches the name of a legend property, such as | legend({'Label1','NumColumns','Label3','Label4'},'NumColumns',2) |
| If none of your labels match the name of a legend property, then you do not need to use a cell array around the labels. | legend('Label1','Label2','Label2') |
R2017b: legend creates axes if they do not exist
Starting in R2017b, if axes do not exist, then the legend function creates them.
R2017a: Legends automatically update when you add or remove data
Starting in R2017a, the legend automatically updates when you add or remove data series from the axes. If you do not want the legend to automatically update, set the AutoUpdate property of the legend to 'off'.
lgd = legend;lgd.AutoUpdate = 'off';
R2014b: Returning multiple outputs is not recommended
Returning multiple outputs using this syntax is no longer recommended:
[lgd,icons,plots,txt] = legend(__)
This syntax creates a legend that does not support some functionality introduced in R2014b or later. For example, you cannot add a title to the legend or specify the number of legend columns. Also, the legend does not automatically update when you add or remove data series from the axes.
Instead, return the Legend object and set Legend Properties.
lgd = legend(__)
See Also
Functions
- plot | hold | title | xlabel | ylabel | text
Properties
- Legend Properties
Topics
- Add Legend to Graph
MATLAB Command
You clicked a link that corresponds to this MATLAB command:
Run the command by entering it in the MATLAB Command Window. Web browsers do not support MATLAB commands.
Select a Web Site
Choose a web site to get translated content where available and see local events and offers. Based on your location, we recommend that you select: .
You can also select a web site from the following list:
Americas
- América Latina (Español)
- Canada (English)
- United States (English)
Europe
- Belgium (English)
- Denmark (English)
- Deutschland (Deutsch)
- España (Español)
- Finland (English)
- France (Français)
- Ireland (English)
- Italia (Italiano)
- Luxembourg (English)
- Netherlands (English)
- Norway (English)
- Österreich (Deutsch)
- Portugal (English)
- Sweden (English)
- Switzerland
- Deutsch
- English
- Français
- United Kingdom (English)
Contact your local office
